Flutter Draggable floating button
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
// Get the size of the FloatingActionButton and return it
double getFabHeight() {
final RenderBox renderBox = _fabKey.currentContext!.findRenderObject() as RenderBox;
return renderBox.size.height*1.5;
}

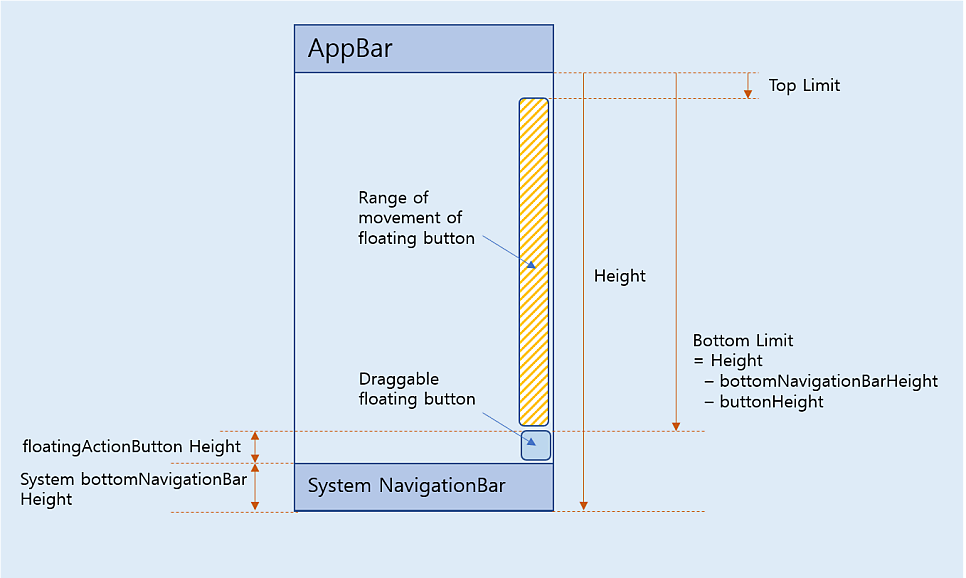

// Calculate the Top Limit for the button position
double getTopLimit() {
final topLimit = MediaQuery.of(context).padding.top; // Top of the screen
return topLimit;
}
// Calculate the Bottom Limit for the button position
double getBottomLimit(double fabHeight) {
double bottomNavigationBarHeight = getBottomNavigationBarHeight(context);
printDebug("bottomNavigationBarHeight: $bottomNavigationBarHeight");
final bottomLimit = MediaQuery.of(context).size.height - bottomNavigationBarHeight - fabHeight;
return bottomLimit;
}
Button에 대한 full code.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
class DraggableFloatingActionButton extends StatefulWidget {
final VoidCallback onPressed;
final Icon buttonIcon;
final String tooltipMessage; // Add a parameter for the tooltip message
const DraggableFloatingActionButton({
super.key,
required this.onPressed,
required this.buttonIcon,
required this.tooltipMessage,
});
@override
_DraggableFloatingActionButtonState createState() => _DraggableFloatingActionButtonState();
}
class _DraggableFloatingActionButtonState extends State {
double topPosition = 0.0;
late double topLimit;
late double bottomLimit;
// Create a global key for the FloatingActionButton
final GlobalKey _fabKey = GlobalKey();
late double fabHeight; // Adjust this value if using a different size for the FloatingActionButton
@override
void initState() {
super.initState();
// Set the initial position for the button (center of the screen)
WidgetsBinding.instance.addPostFrameCallback((_) {
final screenHeight = MediaQuery.of(context).size.height;
setState(() {
topPosition = screenHeight / 2;
printDebug("screenHeight: $screenHeight");
topLimit = getTopLimit();
// Get the height of the FloatingActionButton
fabHeight = getFabHeight();
printDebug("fabHeight: $fabHeight");
// Calculate the bottom limit for the button position
bottomLimit = getBottomLimit(fabHeight);
});
});
}
// Get the size of the FloatingActionButton and return it
double getFabHeight() {
final RenderBox renderBox = _fabKey.currentContext!.findRenderObject() as RenderBox;
return renderBox.size.height*1.5;
}
// Calculate the Top Limit for the button position
double getTopLimit() {
final topLimit = MediaQuery.of(context).padding.top; // Top of the screen
return topLimit;
}
// Calculate the Bottom Limit for the button position
double getBottomLimit(double fabHeight) {
double bottomNavigationBarHeight = getBottomNavigationBarHeight(context);
printDebug("bottomNavigationBarHeight: $bottomNavigationBarHeight");
final bottomLimit = MediaQuery.of(context).size.height - bottomNavigationBarHeight - fabHeight;
return bottomLimit;
}
// Update the position of the button when it's dragged
void onDragUpdate(BuildContext context, DragUpdateDetails details) {
// Calculate the new position of the button
final newTopPosition = topPosition + details.delta.dy;
printDebug("topLimit: $topLimit, bottomLimit: $bottomLimit, newTopPosition: $newTopPosition");
// Update the position while ensuring it's within the screen bounds
setState(() {
topPosition = newTopPosition.clamp(topLimit, bottomLimit);
});
}
@override
Widget build(BuildContext context) {
return Positioned(
right: 4, // Keep the button aligned to the right border of the screen
top: topPosition,
child: GestureDetector(
onVerticalDragUpdate: (details) => onDragUpdate(context, details),
child: Tooltip(
message: widget.tooltipMessage,
child: FloatingActionButton(
key: _fabKey,
onPressed: widget.onPressed,
mini: true, // Set the button size to mini
child: widget.buttonIcon,
),
),
),
);
}
}
화면 Widget에서 사용할 때는 Stack에 넣어서 사용.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
// Your AppBar configuration
),
body: Stack(
children: [
// Other widgets that are part of your body content
WebViewWidget(controller: _controller),
// Other layers or content...
// Positioned DraggableFloatingActionButton inside the Stack
DraggableFloatingActionButton(
onPressed: () {
// Your onPressed code here
},
buttonIcon: const Icon(Icons.star),
tooltipMessage: 'this is floating button',
),
],
),
);
}
[영상]
